Code PMA 10

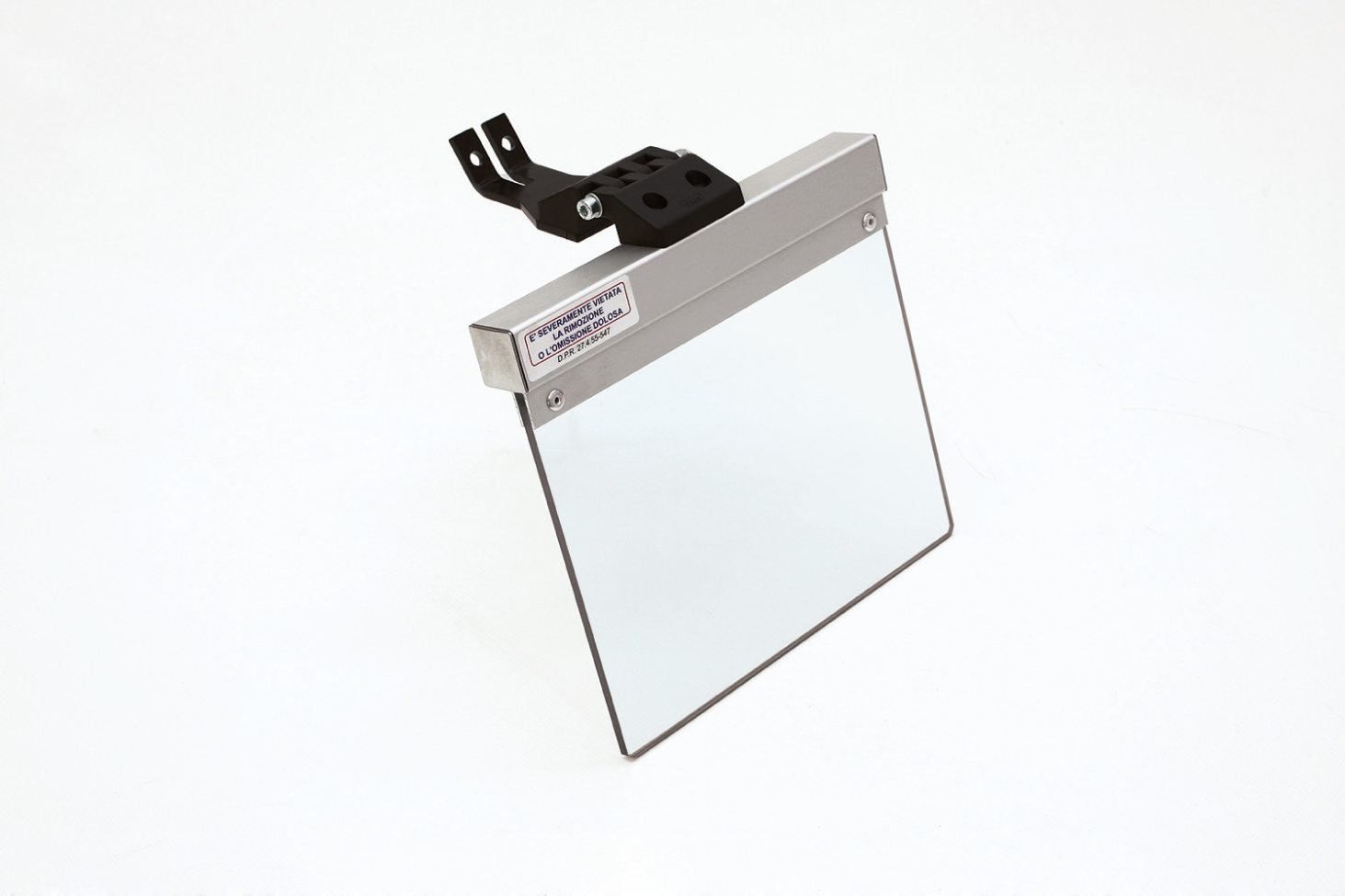

Safety guard with single right-left reversible shield, supported by multi-adjustable hexagonal arms. Equipped with microswitch integrated in the support hinge.
Protects the operator’s face from the projection of sparks and emery.
The particular multi-adjustable hexagonal arms structure allows an easy anchorage on the most different structures, allowing use even on machines with grindstone in “overhang” position.
The hinge that supports the protective shield is integrated with the safety microswitch.
Complete with safety microswitch.
1. Anchorage stirrups – in pressed steel
2. Adjustable support arms – in steel hexagon
3. Shields group rotation hinge, integrated with safety microswitch – n. 2 NC contacts
4. Articulated clamp for the horizontal and vertical adjustment of the shield
5. Shield support border – in aluminium profile
6. Shield – in plastic shockproof material
| CODE | A | B | Kg |
|---|---|---|---|
| PMA 10/112 | 160 | 145 | 2,4 |
| PMA 10/216 | 200 | 185 | 2,6 |
