Code PMA 02
Single shield to be fixed on the grindstone cap, for protection from sparks and emery.
Equipped with rubbing articulation for rapid adjustment.
Protects the operator’s face from the projection of sparks and emery.
The particular form of the anchorage stirrup also allows use on machines with two “flange” caps.
Equipped with rubbing articulation for rapid adjustment and wide plastic shockproof material shield.

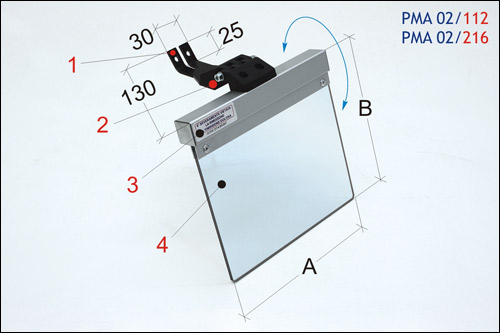

1. Anchorage stirrup – in pressed steel
2. Rubbing articulation – in reinforced polyamide
3. Shield support border – in aluminium profile
4. Shield – in plastic shockproof material
| CODE | A | B | Kg |
|---|---|---|---|
| PMA 02/112 | 160 | 145 | 0,4 |
| PMA 02/216 | 200 | 185 | 0,5 |
