Code PTR 06
Safety guard with vertical shield. Adjustable with telescopic arm system. Suitable for installation on traditional drills, pantographs and similar machines.
Protects the operator from direct frontal contact with rotating spindle parts and from projection of shavings and lubricant-coolant.
The semi-octagonal shield can be adjusted vertically by two different systems:
1) the shield / hexagonal arm group is adjustable inside the tubular stainless support and lockable with a knob (4).
2) possibility to choose the position of the shield by adjusting the shield support clamp (5) in the right position.
Complete with safety microswitch.

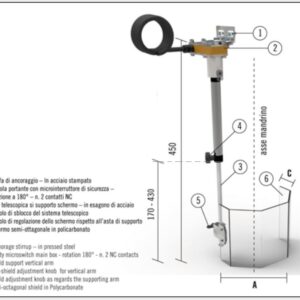

1. Anchorage stirrup – in pressed steel
2. Safety microswitch main box – rotation 180° – n. 2 NC contacts
3. Shield support vertical arm
4. Arm-shield adjustment knob for vertical arm
5. Shield adjustment knob as regards the supporting arm
6. Semi-octagonal shield – in polycarbonate
| CODE | A | B | C | Kg |
|---|---|---|---|---|
| PTR 06/130 | 230 | 130 | 115 | 2,8 |
| PTR 06/180 | 230 | 180 | 115 | 2,9 |
